Linear Actuator | Air Cylinder | Pneumatic Cylinder

Pneumatic Cylinders, also known as air cylinders, are mechanical devices which use the power of compressed air to produce a force in a linear motion. Air Cylinder are used for Pull and Push Operation.

Different variations available are:

  • Single Acting Air Cylinder

  • |

  • Double Acting Air Cylinder

  • |

  • Back to Back Air Cylinder

  • |

  • Tendum Air Cylinder

  • |

  • Magnetic Reed Switch Air Cylinder

  • |

  • Double Ended Air Cylinder

  • |

  • Power Cylinder

  • |

  • Knife Gate Cylinder

ISO VDMA Round Tube Cylinder
ISO VDMA Square Tube Cylinder
Compact Cylinder
Compact Cylinder
Double Ended Cylinder
Double Ended cylinder
ISO VDMA air Cylinder
ISO VDMA Round Tube Cylinder
Reed Switch
Reed Switch Round Tube Cylinder
Tandem Cylinder
Tandem Cylinder

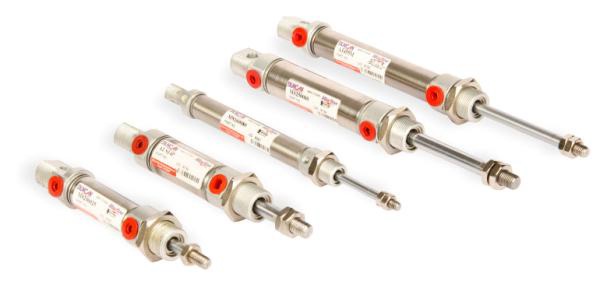

ISO Pencil Cylinder
ISO Pencil Cylinder
positioner Cylinder
Positioner Cylinder
Reed Switch
Reed Switch
Large Bore Cylinder
Large Bore Cylinder

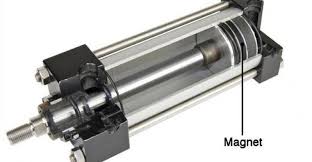

Magnetic Cylinder
Magnetic Cylinder
Reed Switch Round Tube Cylinder
Reed Switch Round Square Cylinder

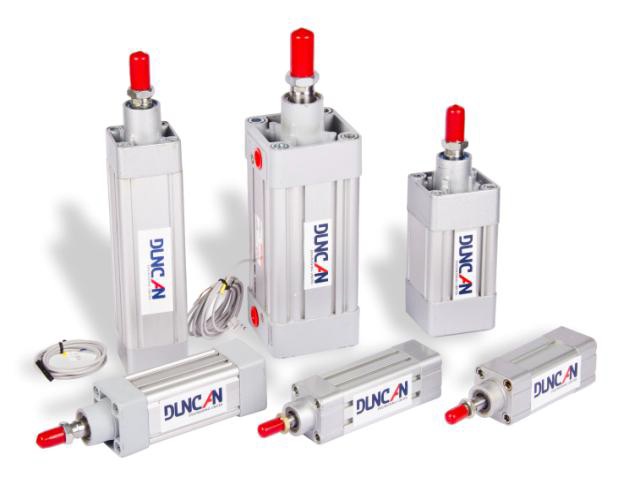

VDMA / ISO Square Tube Cylinder - Magnetic

  • Meets VDMA 24562 and ISO 6431 Standard specifications.
  • Available in 32, 40, 50, 63, 80 & 100 bore Dia
  • Cylinder in Compact & Streamlined construction with range of mountings.
  • Option of reed switch design also available.
  • Super finished anodized aluminum square tube & Polyurethane rod seal ensure Long & trouble free life
ISO Round Tube Air Cylinder
ISO VDMA Round Tube Cylinder
  • Light weight construction, sleek design
  • Miniature ISO range: 12, 16, 20, 25mm Bore dia. Conforming to ISO 6432
  • Medium ISO range : 32, 40, 50, 63, 80 and 100mm bore dia. Conforming to ISO 6431
  • “Add on” feature for mountings available on standard ISO range
Small Bore Inch Series Cylinder

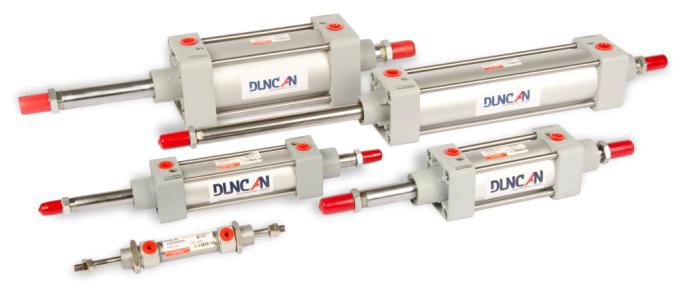

Double Ended Cylinder
  • Proven performance in a wide range of applications
  • Midget Services cylinder available in ½”, ¾”, & 1” bore dia.
  • Medium bore cylinders available in 1-1/2”, 21/4”, 2-1/2”, 3” & 4” Bore Dia.
  • Complete range of mountings like rear trunion, Front trunion, Plate mounting, Central trunion, foot mounting etc. available
Large Bore Power Cylinder
large Bore Cylinder
  • Built for heavy duty and demanding applications
  • Available in 5”, 6”, 8”, 10”, 12”, & 14” bore dia
  • Rugged construction with steel tube and cast iron end covers
  • Cylinders larger than 14” bore available against specific requirements.
Top
Back
More Products

Rotary Actuator for Valve Automation

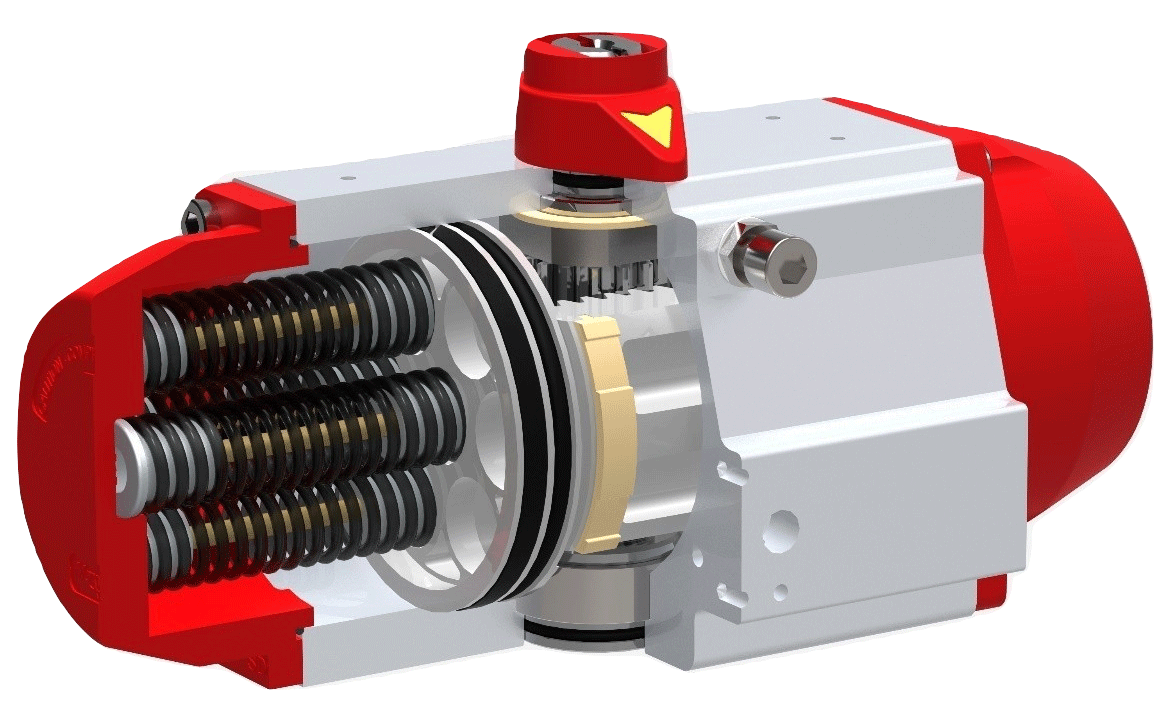

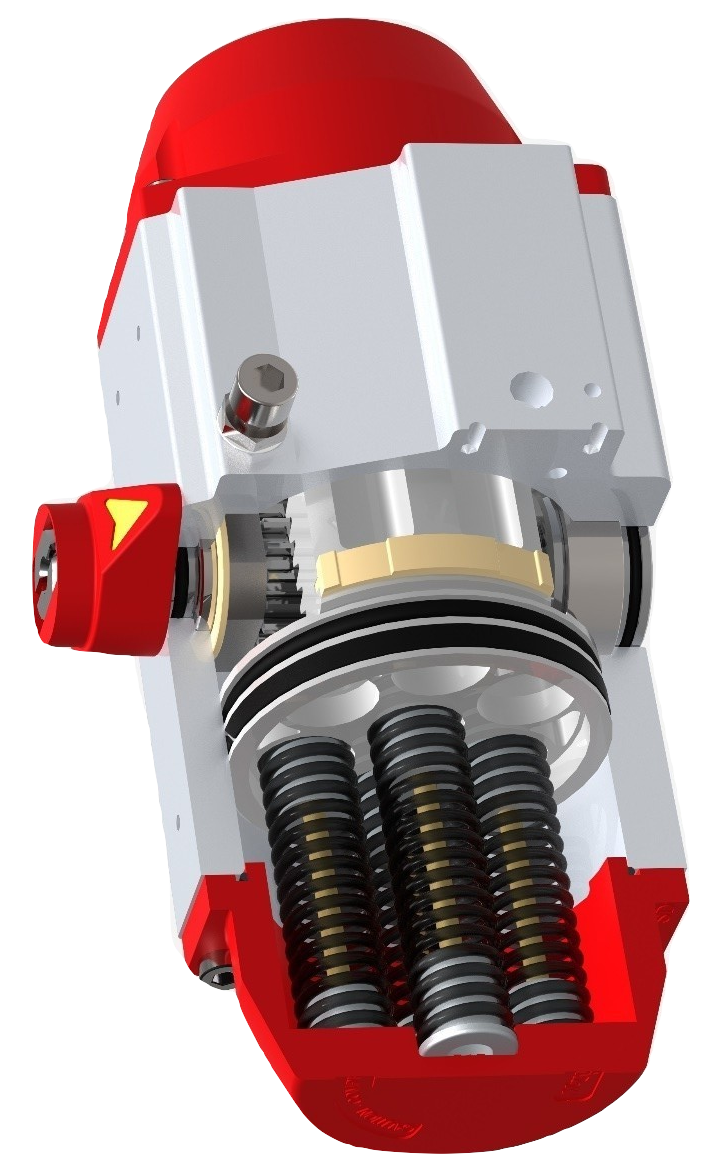

A rotary actuator is an actuator that produces a rotary motion or torque. The simplest actuator, it is purely mechanical, where linear motion in one direction gives rise to rotation.

Rotary Actuator for Ball Valve. Rotary Actuator for Butterfly Valve.

Rack and pinion design:
Rack and pinion is a type of linear actuator that comprises a pair of gears which converts rotational motion into linear motion. A circular gear called "the pinion" engages teeth on a linear "gear" bar called "the rack"; rotational motion applied to the pinion causes the rack to move relative to the pinion, thereby translating the rotational motion of the pinion into linear motion.

Different variations available are:

  • Single Acting Rotary Actuator

  • |

  • Double Acting Rotary Actuator

  • |

  • Actuator With Limit Switch

  • |

  • Actuator With Solenoid Valve

Design Dual Rack & Pinion
Type Double Acting & Single Acting
Body Extruded Aluminium, Hard Anodized
Pinion Extruded Aluminium, Hard Anodized
Seal Buna N/ Silicone/ Viton
Bearing Metal DU Bush
Torque 1900 Nm maximum at 8 bar air pressure
Temperature (-)40°C  to (+)180°C
Supply Air Pressure 3 bar minimum, 8 bar maximum
Features Stroke adjustment ± 5°, both ways
Mounting ISO 5211 mounting/ Namur interface
Life 1 Million Cycles
rotary
rotary
Size Range

For Data Sheet Click here:

Duncan Rotary Actuator: MD / MS

Back
More Products

Process Valve | Angle Seat Valve | Y type Control Valve

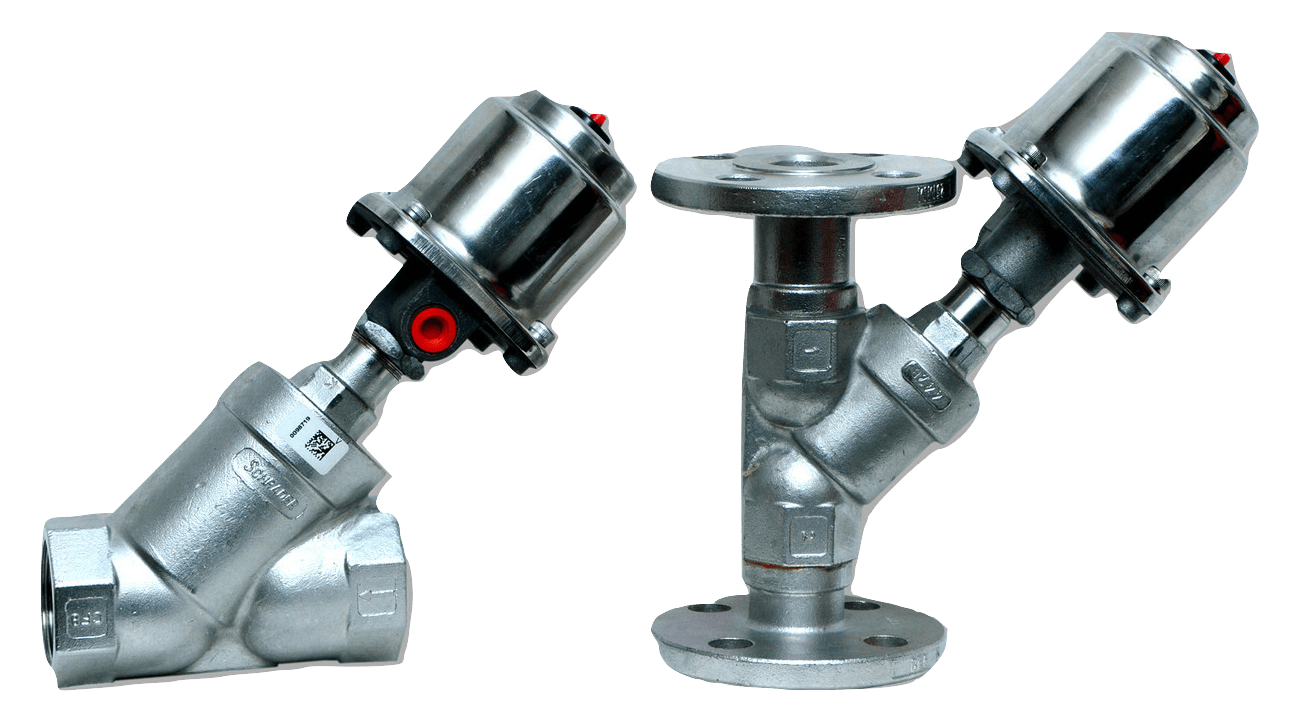

Flowell Angle Seat valve is used for ON/OFF application. The valve is 2/2 and 3/2 way pneumatically actuated piston valve for liquids, gases, steam and viscose fluids. The valve has a stainless steel body and stainless steel housing for actuator suitable for demanding environments.

Angle Seat Valve
Type Single Acting Normally Close / Open
Design Piston Angle Seat Valve. 2 Way and 3 Way
Body SS-304 / SS- 316
Trims SS-304 / SS-316
Seat Metal to Metal / PTFE
End Connection Screwed / Flanged
Pressure 0 – 16 Bar

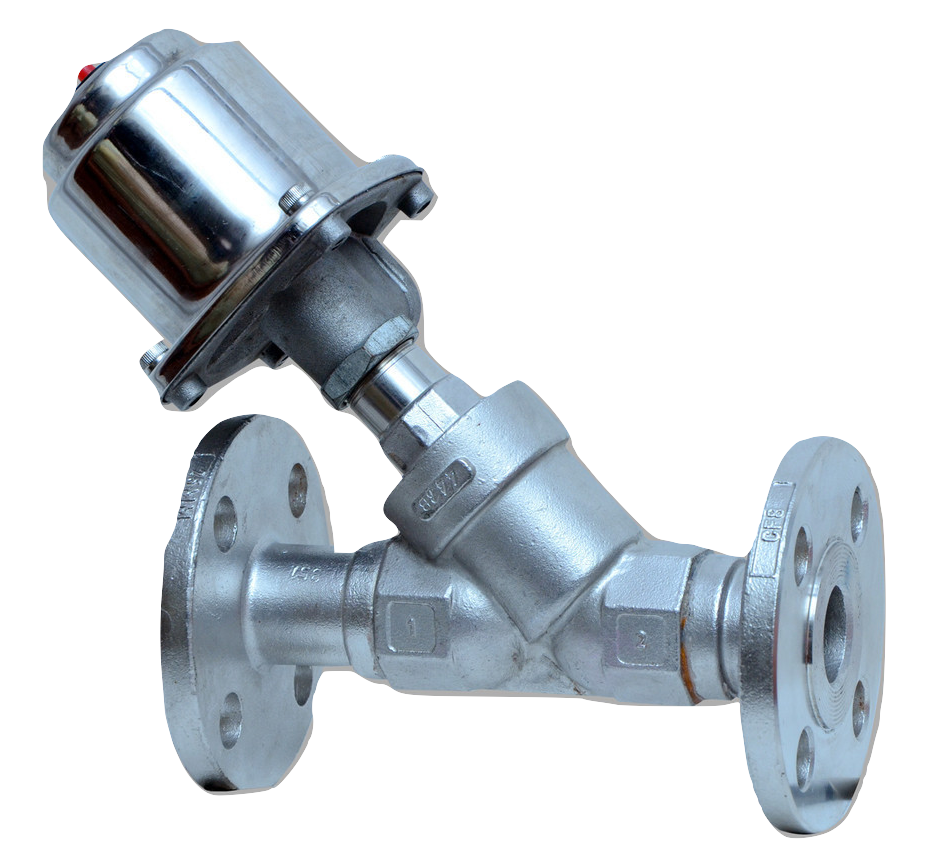

Y- type control Valve Back
More Products

Directional Control Valve | Solenoid Valve

One of the most fundamental components of any fluid power system is the directional-control valve. The different types are: Pilot Operated 5/2 Solenoid Valves, Pilot Operated 3 Port Solenoid Valves, Hand Lever / Push Button Operated 5/2 Mechanical Valves and Air Operated Valves.

Different variations available are:

  • Single Solenoid Valve

  • |

  • Double Solenoid Valve

  • |

  • Spool Design Dolenoid Valve

  • |

  • Poppet Design Solenoid Valve

  • |

  • Hand Lever Operated Directional Control Valve

  • |

  • Foot Lever Operated Directional Control valve

  • |

  • Push Pull Directional Control Valve

  • |

  • Pilot Operated Solenoid Valve

  • |

  • Pilot Operated Directional Control Valve

1/8" and 1/4" 5/2 DC Valve
Excel Valve
These high performance and miniature size valves are available in ¼” & 1/8” port sizes In 5/2 and 3/2 versions
  • Streamlined construction, Ideal for easy and compact gang manifolding
  • Quick response to actuation
  • Low friction dynamic seals
  • Working pr. : 1.5 to 8 Kg/cm2
  • Flow rate Cv: 0.7 (700 Liters/min)
  • Sol. Coil rating : 3W /5 VA
  • Coil voltage : 240 VAC, 110 VAC, 24 VDC (other Voltage on request)
High Flow Valves
High Flow Valve
These new generations of spool valves with high flow capacities are available in ¼” port Size in 5/2 and 3/2 versions
  • Wear compensating “dancing seals” design
  • Choice of side and subbase porting
  • Available in Bar type and Subbase type gang manifolding
  • Working pr. : 1.5 to 8 kg/cm2
  • Flow rate Cv : 1.3 / 2.2
  • Sol. Coil rating : 3W /5 VA
  • Coil voltage: 240 VAC, 110 VAC, 24 VDC (other Voltage on request)
Spool Valves
Spool Valve
These modular spool valves are sturdy in construction and are time tested for their wide Applications and ruggedness
  • Available in 5/2 & 5/3 Versions
  • Choice of side & subbase porting
  • Subbase type gang manifolding available
  • Working pr. : 2.7 to10 kg/cm2
  • Flow rate Cv : 1.0 (1000 liters/min)
  • Sol. Coil rating : 3W /5 VA
  • Coil voltage: 240 VAC, 110 VAC, 24 VDC (other Voltage on request)

Poppet Valves
Poppet Valve
These Poppet valves are designed to give long & trouble free services under the most Arduous conditions.
  • Available in 1/4”, 3/8”, 1/2", 3/4" & 1” sub base port connections
  • Available in Solenoid, manual or Pilot actuations
  • The design of face sealing on poppet makes the valve “Self Cleaning” under Adverse air conditions
  • Long life of seals achieved by metal to metal contact during traverse and metal to rubber contact for face sealing
  • Explosion proof coil can be Offered as per IS 2148/1981
  • Gang manifolding facility available having common inlet & exhaust
  • Working Pressure :- 1.5 to 10 Kg/cm2
  • Flow rate Cv : 2.04(3/8” Port) to 5.0 (3/4" Port)
  • Sol. Coil rating : 3W /5 VA
  • Coil voltage: 240 VAC, 110 VAC, 24 VDC (other Voltage on request)

Poppet vertical
3/2 MIDGET POPPET VALVES:-
Midget poppet valves incorporate compact poppet design in 1/8” -3/2 construction.
The range includes roller, plunger, one way trip actuators which are useful as mechanical
Limit switches giving pneumatic single on actuation. Others actuators are push button,
Mushroom and pilot which are with spring return mechanism while lock down is of detent Type.
3/2 VERTICAL POPPET VALVES:-
Vertical poppet valves utilize the well proven poppet principle to give high flow rates with Short valve travel. Basic valve is of 9.5mm (3/8”) orifice and offered in ¼”, 3/8” and ½” Connections. The valves is with normally closed or normally open construction with solenoid and pilot actuations.
Top
Back
More Products

Direct Acting Valve | Diaphragm Oprerated Valve

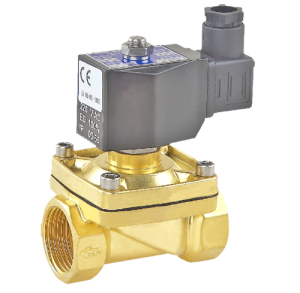

Direct Acting Solenoid Valve are available in Midget and Diaphragm Design. The different types are: normally open direct acting solenoid valve or normally closed direct solenoid valves. Variants available are 2/2 Direct Acting Valve or 3/2 Direct Acting Valve.

Different variations available are:

  • Midget Solenoid Valve

  • |

  • Direct Acting Solenoid Valve

  • |

  • Diapharagm Operated Solenoid Valve

  • |

  • Pulse Valve or Dust Collector Valve

  • |

  • Pneumatic Limit Switch

  • |

  • 3/2 Solenoid Valve

  • |

  • 2/2 Solenoid Valve

Direct Acting Midget Solenoid Valves
Direct Acting Midget Valve
2 way and 3 way direct acting solenoid valves are generally used for operating midget cylinders Or for remote control of main valve. The valves are suitable for air, water, light oil and are also Be selected in G25 (4W/6.5 VA) and G50 (8W/14.5 VA) coil versions. The G50 range valves Are also offered with flame proof coil class I, IIA, IIB, as per IS 2148
2 Way Valves
2 Way Valve
Schrader also offers following internal pilot operated 2 way solenoid valves which are Suitable for air, water and oil
  1. ¼” to 1-1/2” 2 way diaphragm operated alves. The design is compact with higher Flow capacities. ¼”, 3/8”, ½” are with brass body & G 25 coil while ¾”, 1”, 1-1/2” Are offered with stainless steel body & G 50 Coil
  2. 1” – 2 way pistons operated valve with 25mm orifice. The design is sturdy and is suitable For heavy duty applications.
  3. 1”, 1-1/2” way pulse valve which is mainly used for dust collector system.
1" -2", 2 Way Axial Valves

Axial valve is an innovative improvisation over conventional ball valve & rotary actuator Assembly.
The axial valve offers following features & advantages
  • Compact design, combining functions of conventional ball valve and rotary actuator.
  • All stainless steel streamlined construction.
  • Viton seals are used as standard, which are compatible to air, water, oil, hydrocarbons Etc. and can withstand temperatures up to 180 C
  • Provided with Namur standard base for directly mounting Namur valves.
  • Provision of normally close; normally open single acting and double acting versions.
  • Available in 1”, 1-1/2” & 2” Port sizes.
  • Flow rate Cv : 16,53 & 75 respectively

Top
Back
More Products

Actuator and Process Valves
